You are here : Home >> Products >> LSAW Steel Pipe

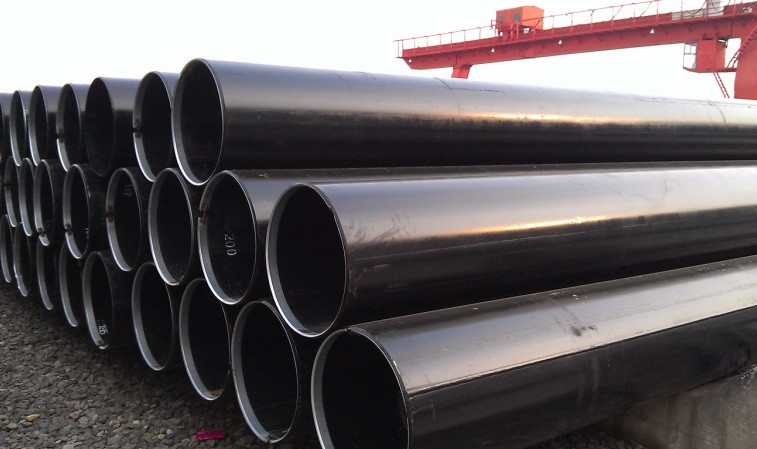

LSAW Steel Pipe

API 5L PSL1 PSL2 API 2B EN10219 ASTM A671 ...

Standard: API 5L PSL1/ PSL2, API 2B, EN10219, ASTM A671 CL13, ASTM A672 CL13, ASTM A252 etc.
Steel Grade:
API 5L:Gr.B,X42,X52,X60,X65,X70,X80,
EN10219: S275JRH,S275J0H,S275J2H,S355JRH,S355J0H,S355J2H
A671/A672 CL10-CL13:CA55,B65,B70,C70
ASTM A252: GR.2,GR.3

Available Dimension Range:

WT (mm)
OD (mm)
325 355 457 508 610 711 762 813 864 914 1016 1118 1168 1219 1321 1422 1524 1626 1727 1829 1930 2032
6
8
9.53
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52

Size:
LSAW, DSAW:
Outer Diameter: 219mm-1820mm
Wall Thickness: 5.0mm-50mm
Length: 5mtr-12mtr

End:square ends (straight cut, saw cut, and torch cut). or beveled for welding, beveled,

Surface
: Lightly oiled, Hot dip galvanized, Electro galvanized, Black, Bare, Varnish coating/Anti rust oil, Protective Coatings (Coal Tar Epoxy, Fusion Bond Epoxy, 3-layers PE)

Packing:
Plastic plugs in both ends, Hexagonal bundles of max. 2,000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips, Plastic caps.Test:Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield
strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test.
Mill Test Certificate:EN 10204/3.1B
Third party inspection:SGS, BV, Lloyds etc.
